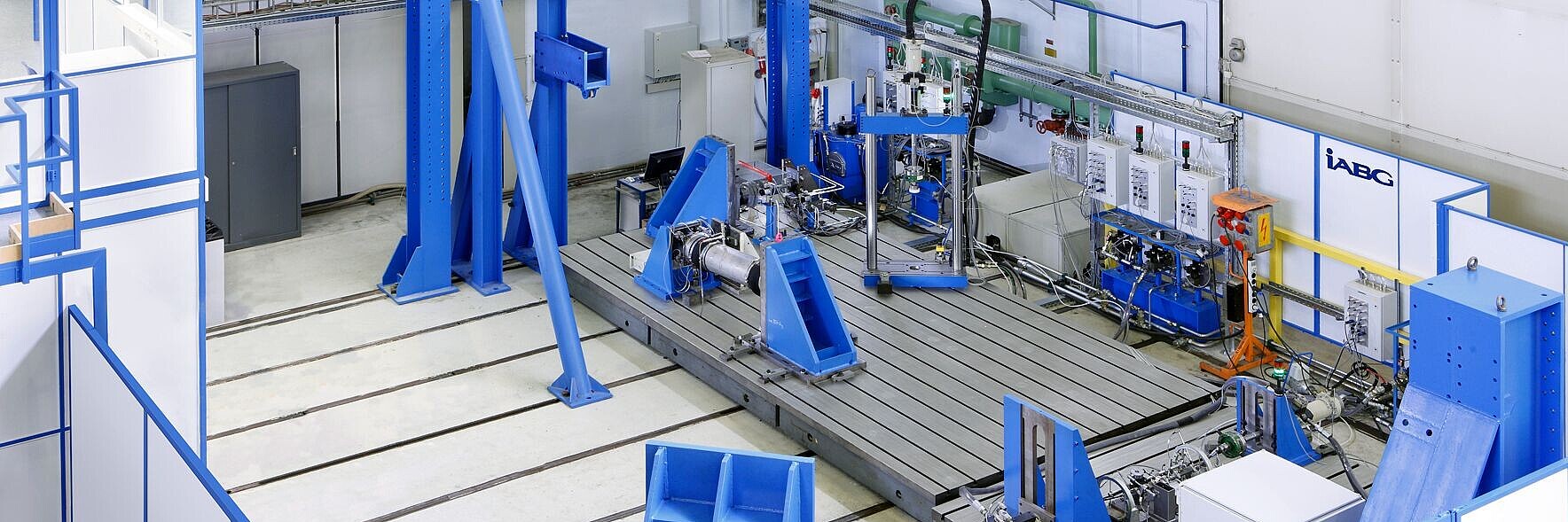

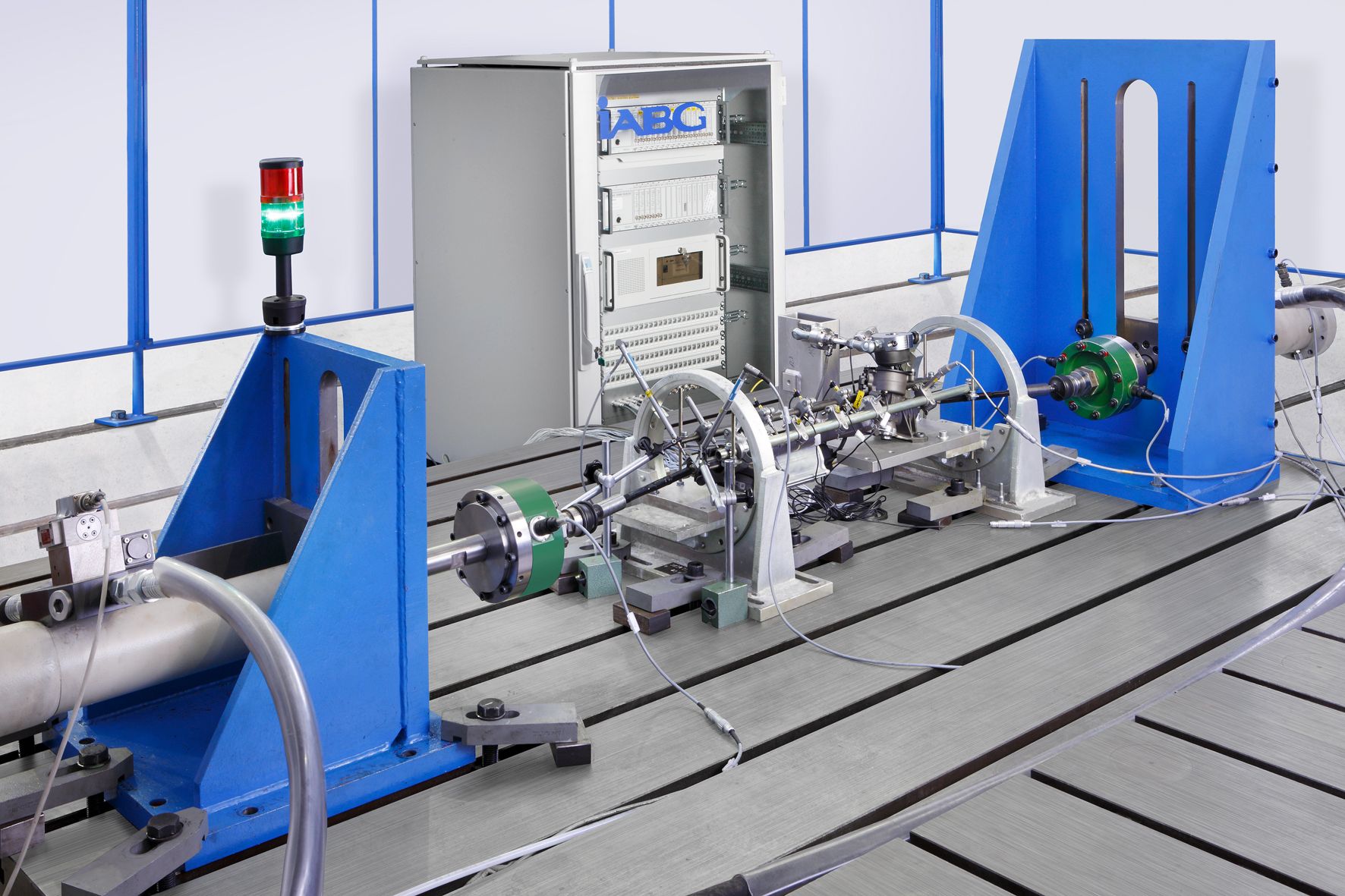

The hydraulic clamping field "HYDRA" is particularly suited for variable test setups. Its modular systems minimize setup time, ensuring quick and cost-effective test preparation. The clamping field is equipped with a multi-channel control system, and offers hydraulic cylinders in various sizes, as well as diverse clamping angles and load frames for customized test configurations. Additionally, tests can be conducted using electromechanical, electrodynamic and pneumatic drives.

Technical data:

• Performance data: Forces up to 1,200 kN, moments up to 4 kNm
• Main clamping area: 6 x 3 m, secondary clamping area: 3 x 2 m, T-slots in 250 mm grid
• Digital controller with several control PCs, various control channels and analog and digital IOs
• Hydraulic supply: several connection units with more than 800 l/min at 280 bar
• Climate and temperature conditions adjustable from -75 °C to +180 °C via mobile air circulation systems
